Floor Drain Ts-217

Floor Drain Funnel TS-217
Technical Specifications

• Product Code: TS-217
• Product Name: Floor Drain (Drain Funnel)
• Color: Brushed Nickel
• Material: Cast Brass

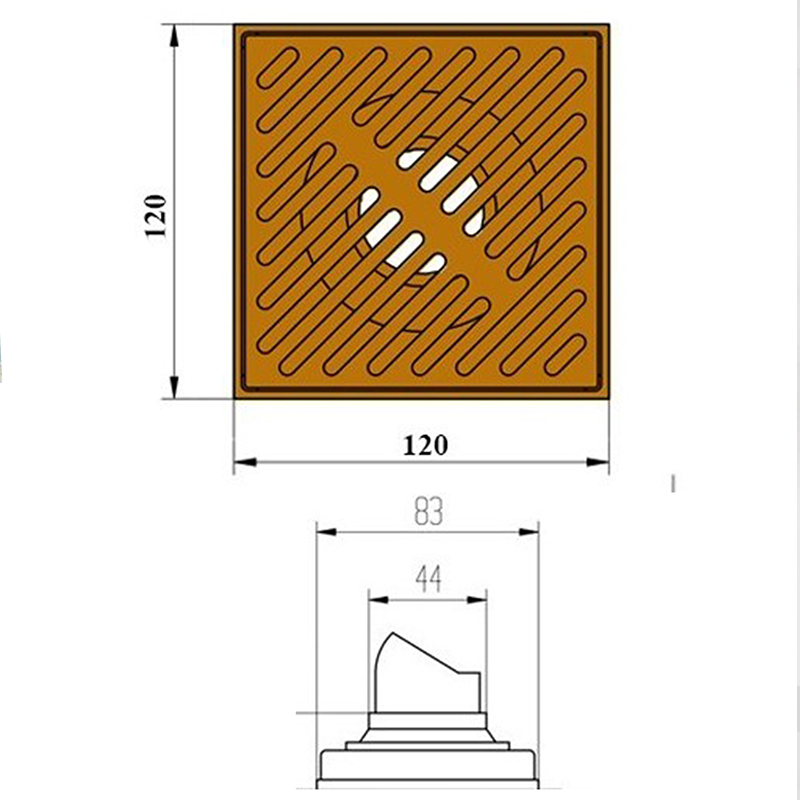

• Dimensions: 120*120mm
• Drain Pipe Size: Ø90mm – Ø110mm

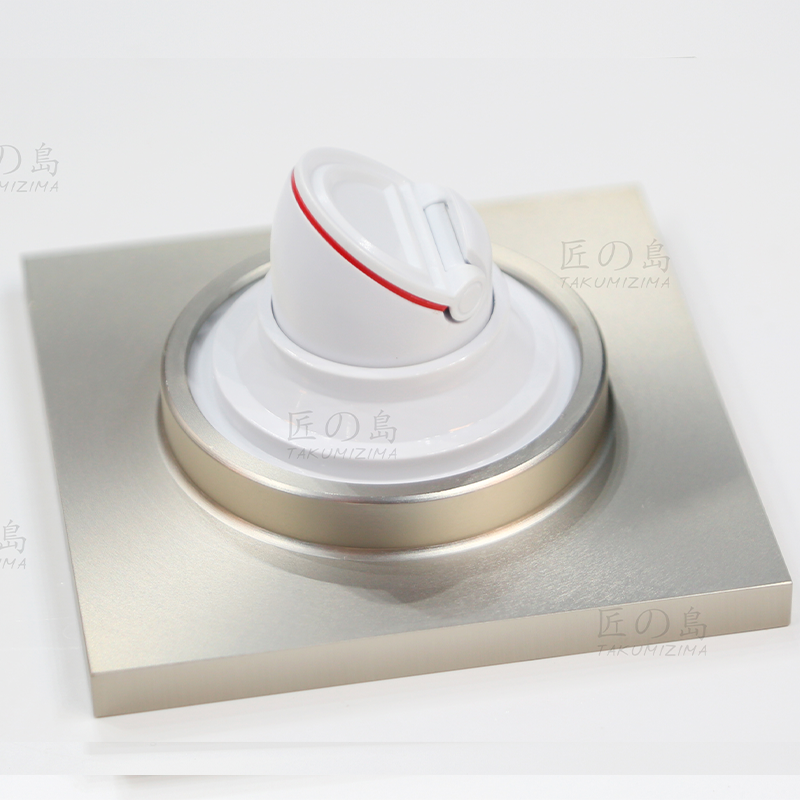

• Odor Prevention: Mechanical valve
• Brand: Takumizima – Japan

Product Description
The TS-217 floor drain funnel is made from cast brass material with CNC cutting, brushed nickel plating, and combined with virgin ABS plastic. The brushed nickel color ensures superior quality, excellent rust resistance, and extremely high durability. With a square face size of 120*120mm and a round pipe diameter of 84mm, this drain funnel is suitable for drain pipes with 90mm or 110mm exit fittings. The odor prevention system uses a mechanical valve to effectively block odors.

The TS-217 floor drain consists of 4 main parts: the drain cover, the base (attached to the floor), the debris guard, and the odor prevention foot. The drain model is designed with a round drain cover, CNC-cut with very precise details.

The TS-217 floor drain consists of 4 main parts: the drain cover, the base (attached to the floor), the debris guard, and the odor prevention foot. The drain model is designed with a round drain cover, CNC-cut with very precise details.

    The TS-217 floor drain is a robust model with a modern design for the drain cover and color, suitable for various tile colors. It also features significant improvements in the water outlet foot and odor prevention system, allowing for faster water drainage and better odor control.

The product is designed for easy installation and maintenance during use. We guarantee that all products are genuine and come with a long warranty according to Takumizima Japan's policy.
