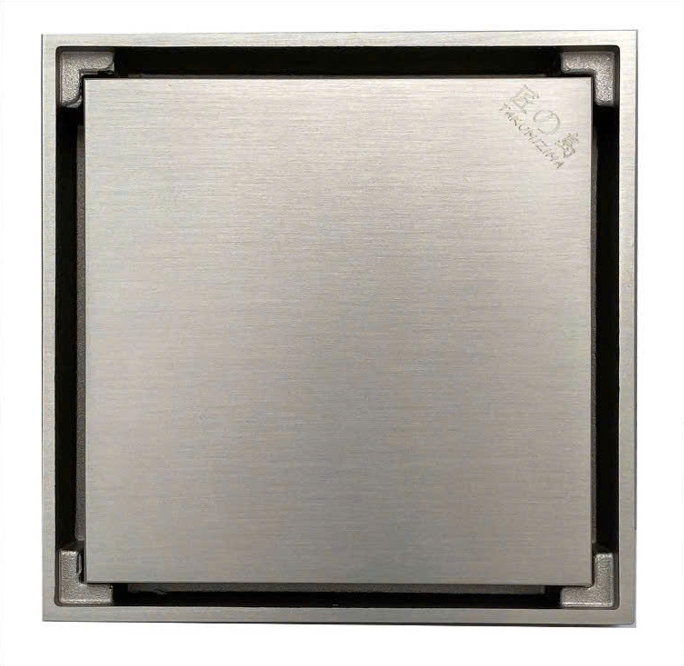

Floor Drain TS-604B
Technical Specifications
Product Code: TS-604B
Product Name: Floor Drain (Funnel Floor Drain)
Color: Matte Nickel
Material: Cast Brass with Nickel Plating

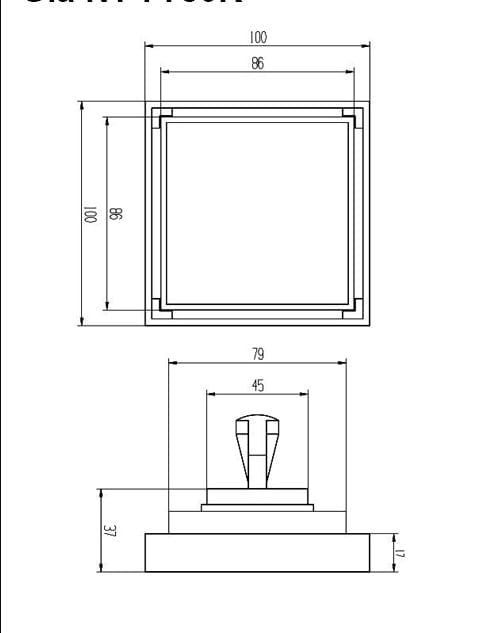

Dimensions: 100 * 100 mm
Drain Pipe Size: Ø60mm – Ø90mm
Odor Prevention: Mechanical Valve
Brand: Takumizima – Japan
Product Description
The TS-604B floor drain is made from cast brass with CNC cutting and PVD coating. The matte nickel color ensures superior quality with excellent rust resistance and a very high durability. With square dimensions of 100 * 100 mm and a drain hole of 40mm, this floor drain is suitable for water pipes with drainage sizes of Ø60, Ø76, and Ø90.

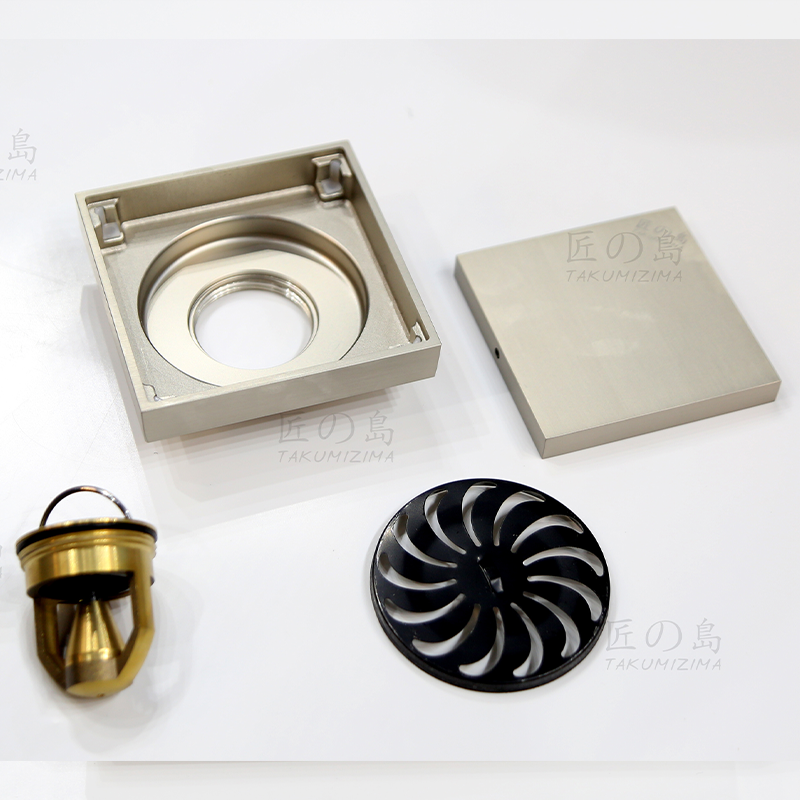

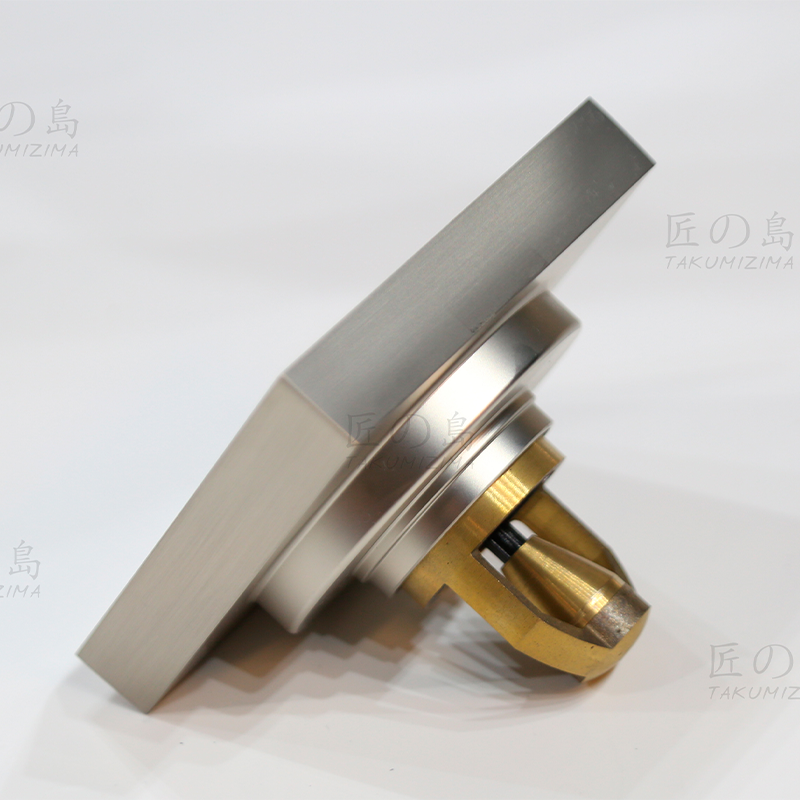

The TS-604B floor drain consists of four main parts: the drain cover, the drain base (attached to the floor), the debris guard, and the odor prevention trap. The drain is designed with a round cover, and the CNC-cut details are very precise.
The TS-604B floor drain can be used flexibly with different types of odor prevention traps, including water traps or mechanical traps, suitable for each installation location.

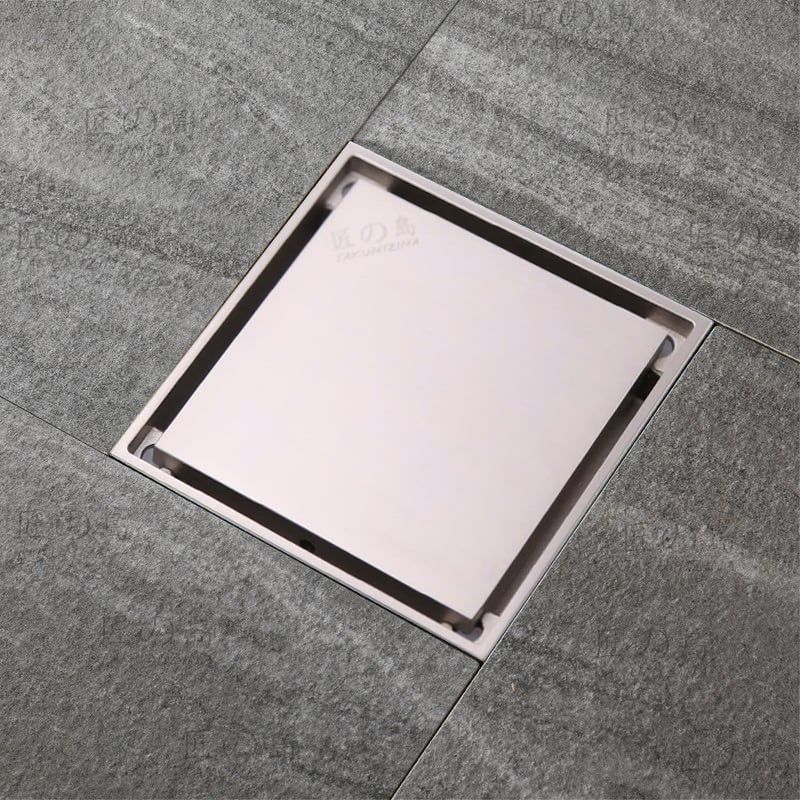

The TS-604B floor drain is a thick, seamless model with a surface that can be tiled, creating a continuous look for the shower floor (concealing the drain's location). It also features significant improvements in the water drainage and odor prevention system, helping water drain faster and effectively preventing odors.
The product is designed for easy installation and cleaning during use. We guarantee that all products are genuine and come with a long-term warranty as per Takumizima Japan's policy.
