Floor Drain Ts-604t

Floor Drain Funnel TS-604T
TECHNICAL SPECIFICATIONS
Product Code: TS-604T
Product Name: Floor Drain Funnel
Color: Titan
Material: Cast Copper with Titan Coating

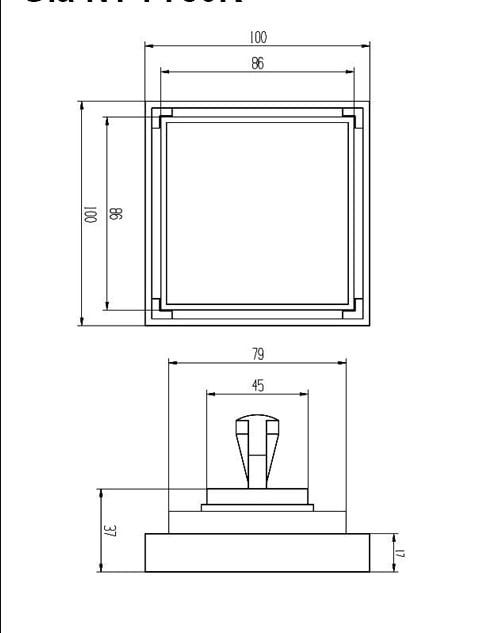

Dimensions: 100 * 100 mm
Drain Pipe Size: Ø60mm – Ø90mm
Odor Prevention Mechanism: Mechanical Valve
Brand: Takumizima – Japan

PRODUCT DESCRIPTION
The TS-604T floor drain is made from CNC-cut cast copper with a PVD Titan coating. The Titan color ensures excellent quality, providing great rust resistance and extremely high durability. With a square surface size of 100*100mm and a drain hole of 40mm, this model is suitable for drainage pipes with sizes of Ø60, Ø76, and Ø90mm.

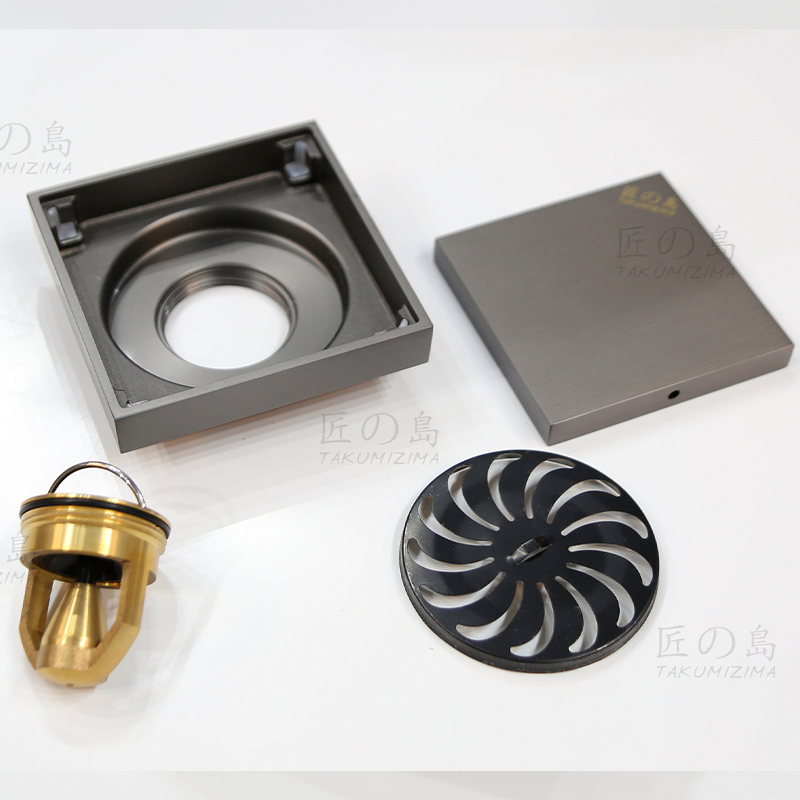

    The TS-604T floor drain consists of 4 main parts: the drain cover, the drain base (attached to the floor), the debris filter, and the odor prevention foot. The floor drain is designed with a round drain cover with CNC-cut details that are very intricate.

The TS-604T floor drain can be flexibly used with various models of odor prevention traps or mechanical traps, suitable for each installation location.

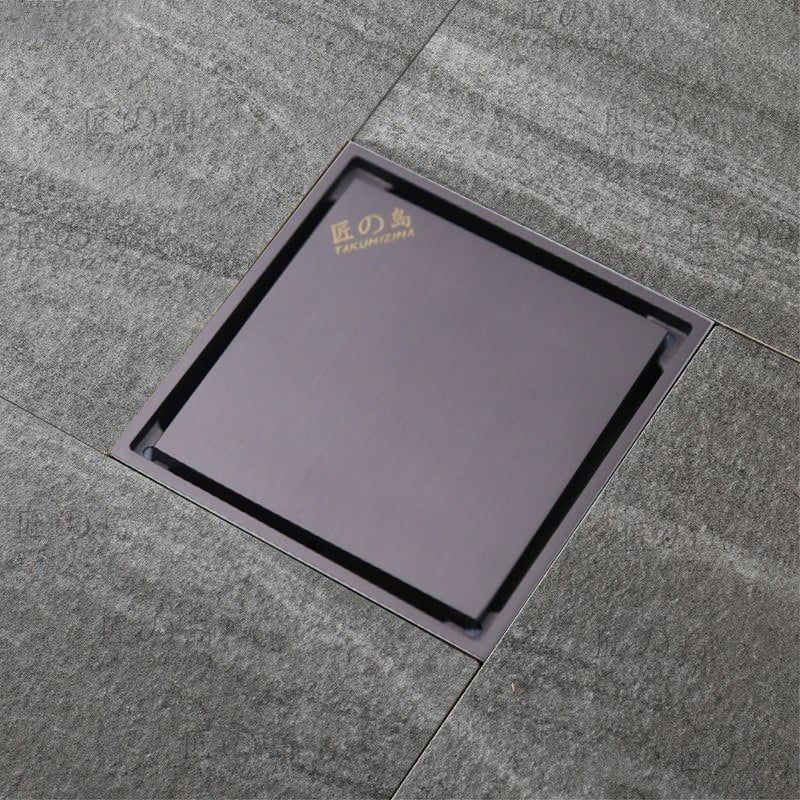

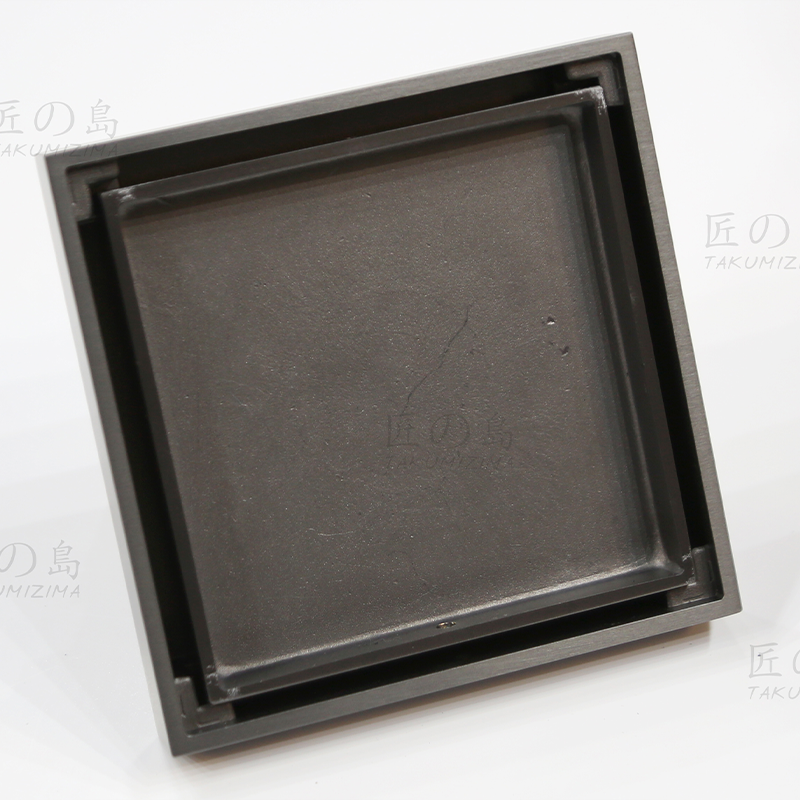

The TS-604T floor drain is a sturdy model with a seamless drain cover that can be tiled on the back to create a continuous look for the bathroom floor (concealing the position of the drain). It also features significant improvements in the water drainage foot and odor prevention mechanism, helping water drain faster and odor be prevented more effectively.

The product is designed for easy installation and cleaning during use. We guarantee that all products are genuine with a long warranty according to the policy of Takumizima Japan.
