Floor Drain Ts-604t-12

Floor Drain TS-604T-12
Technical Specifications
Product Code: TS-604T-12
Product Name: Floor Drain Funnel
Color: Titan
Material: Cast Copper with Titan Coating
Size: 120 * 120 mm
Drain Pipe Size: Ø76mm – Ø110mm
Odor Prevention Type: Water Trap Valve
Brand: Takumizima – Japan

Product Description

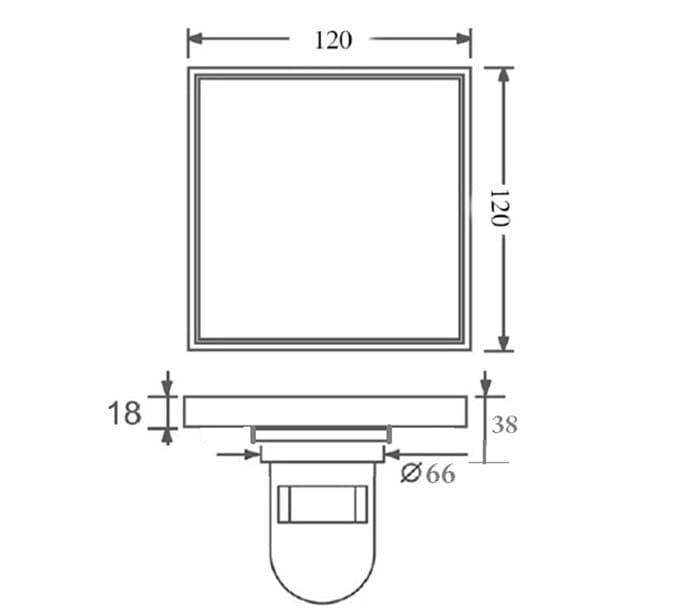

The TS-604T-12 floor drain is made from cast copper, CNC cut, and PVD coated with a Titan color finish. It guarantees superior quality, excellent rust resistance, and extremely high durability. With a square cover size of 120 * 120mm and a 66mm drain hole, this floor drain is suitable for water pipes with drain sizes of 76mm, 90mm, and 110mm.

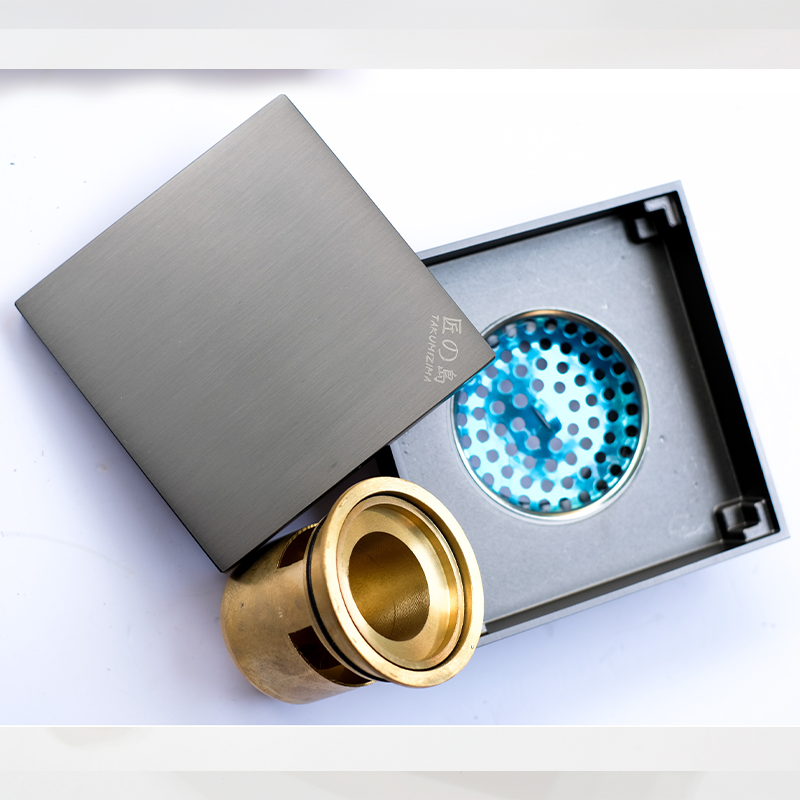

The TS-604T-12 floor drain consists of four main parts: the drain cover, the drain base (attached to the floor), the debris guard, and the odor trap. The floor drain is designed with a solid square cover, CNC cut with very precise details.

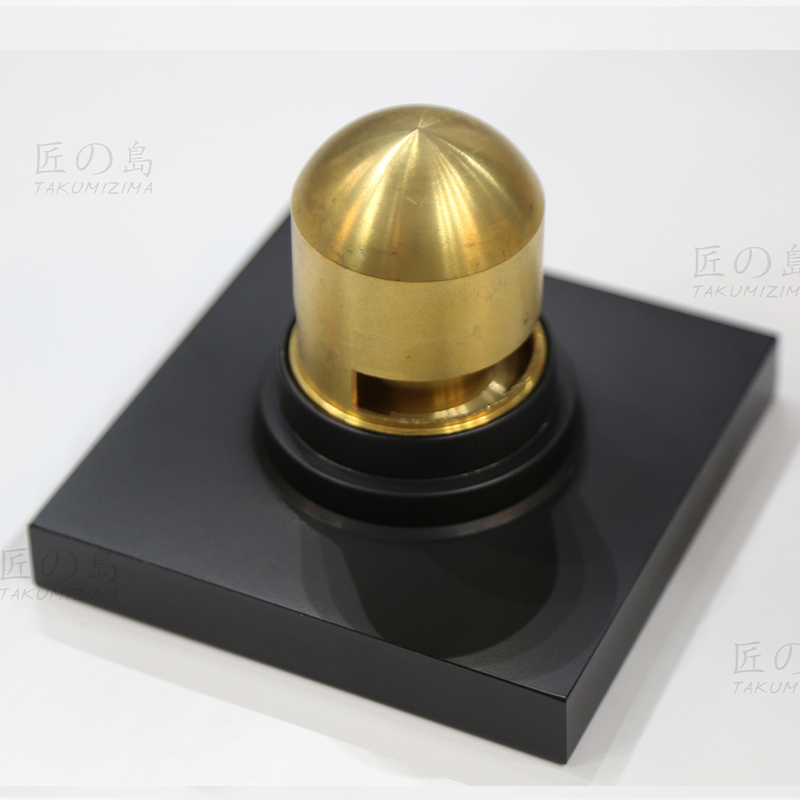

The TS-604T-12 floor drain uses a large-diameter water trap valve to help drain water quickly and prevent odors effectively.

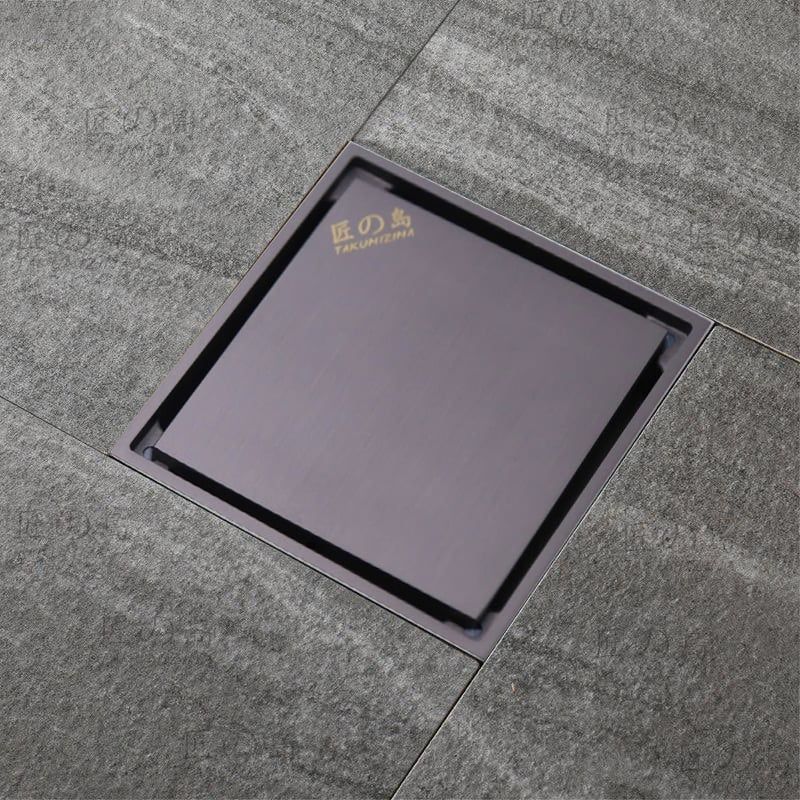

   The TS-604T-12 floor drain is a robust model with a seamless cover, allowing for tile integration on the back to create a continuous feel for the shower floor (concealing the drain's position). It also features significant improvements in the water drain and odor trap. This helps the water drain more quickly and enhances odor prevention significantly.

The product is designed for easy installation and cleaning during use. We guarantee that all products are genuine with a long-term warranty in accordance with Takumizima Japan's policy.
