Floor Drain TS-617

Floor Drain TS-617
Technical Specifications

• Product Code: TS-617
• Product Name: Odor-blocking Floor Drain
• Color: Antique Copper
• Material: Cast Brass

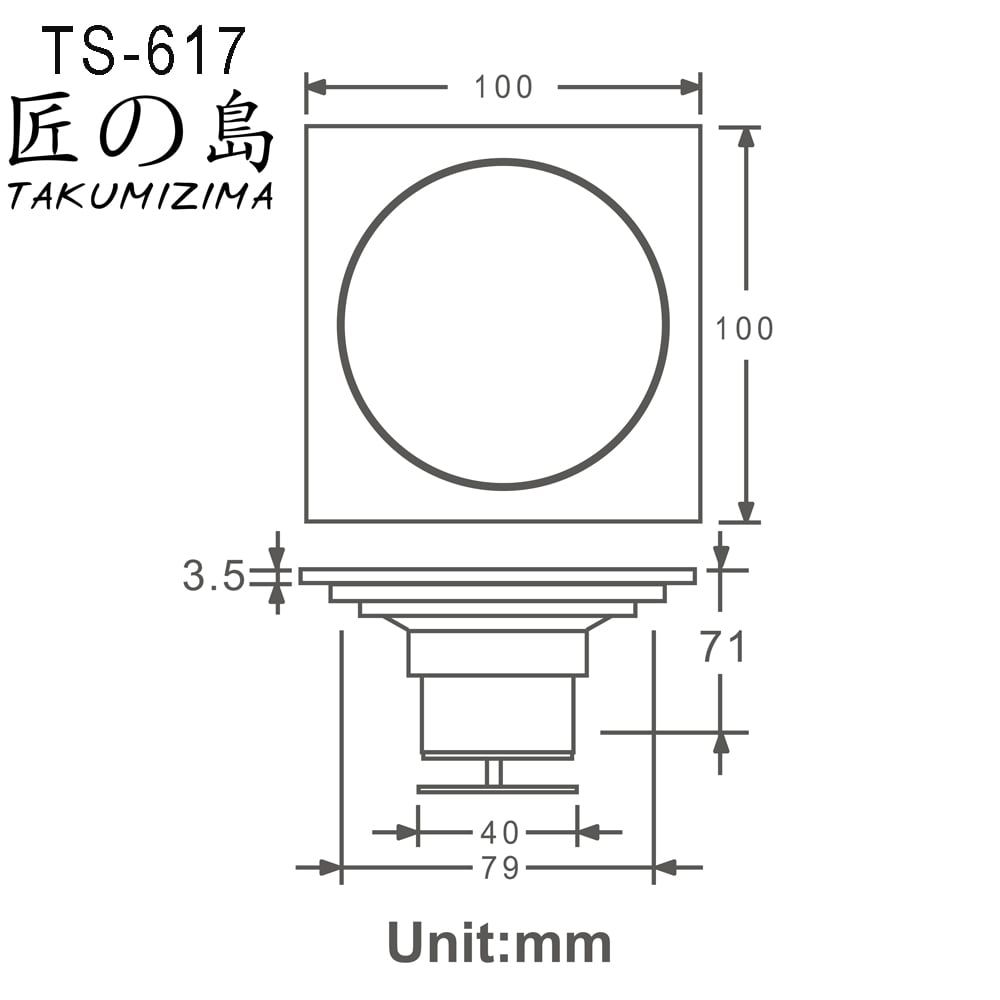

• Dimensions: 100 * 100mm
• Drain Pipe Size: Ø60-90mm
• Odor Prevention Method: Mechanical Valve, Water Trap
• Brand: Takumizima – Japan

Product Description

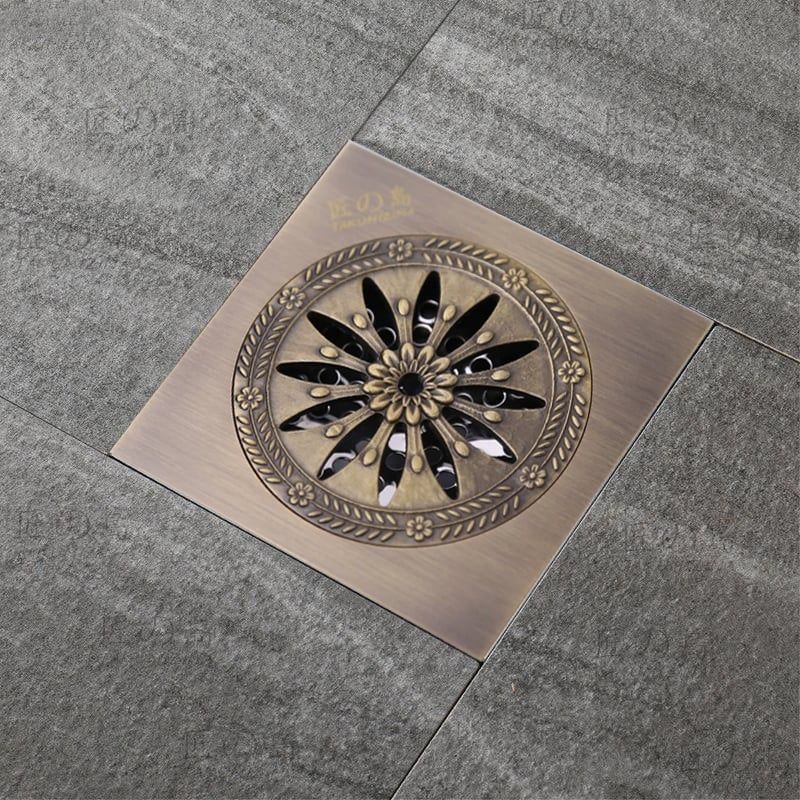

The TS-617 floor drain is made from CNC-cut cast brass, coated with antique copper. The material ensures superior quality, excellent rust resistance, and high durability. With a square size of 100*100mm and a drain hole of 40mm, this model is compatible with drainage pipes of 60, 76, and 90mm diameter.

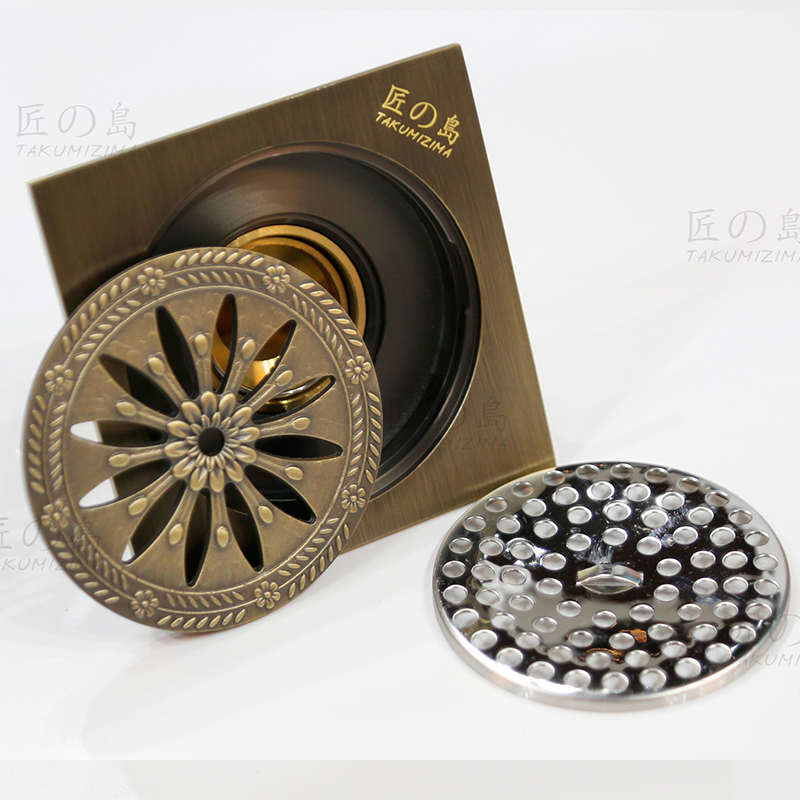

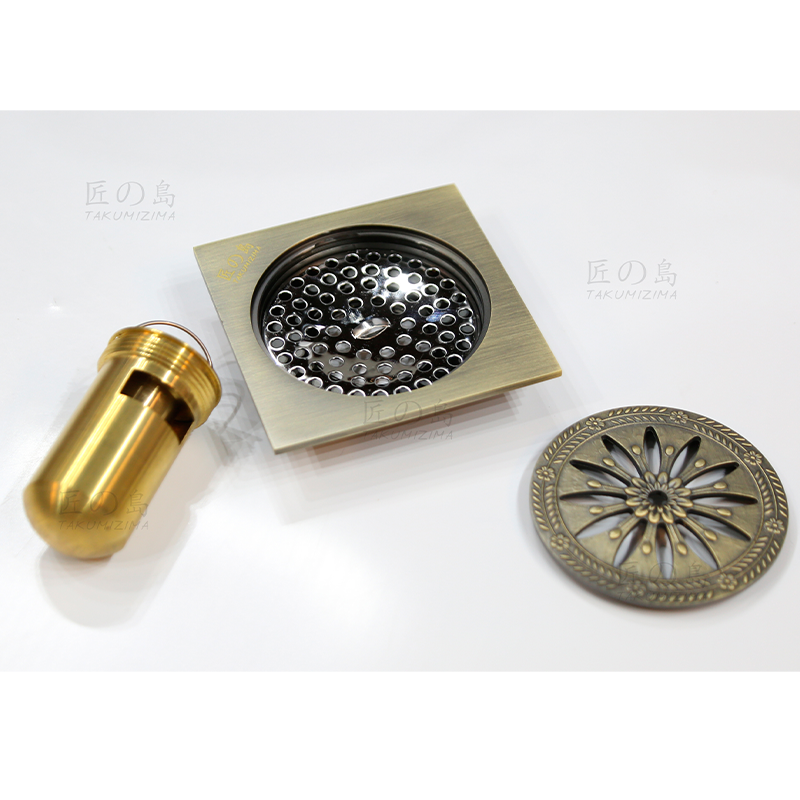

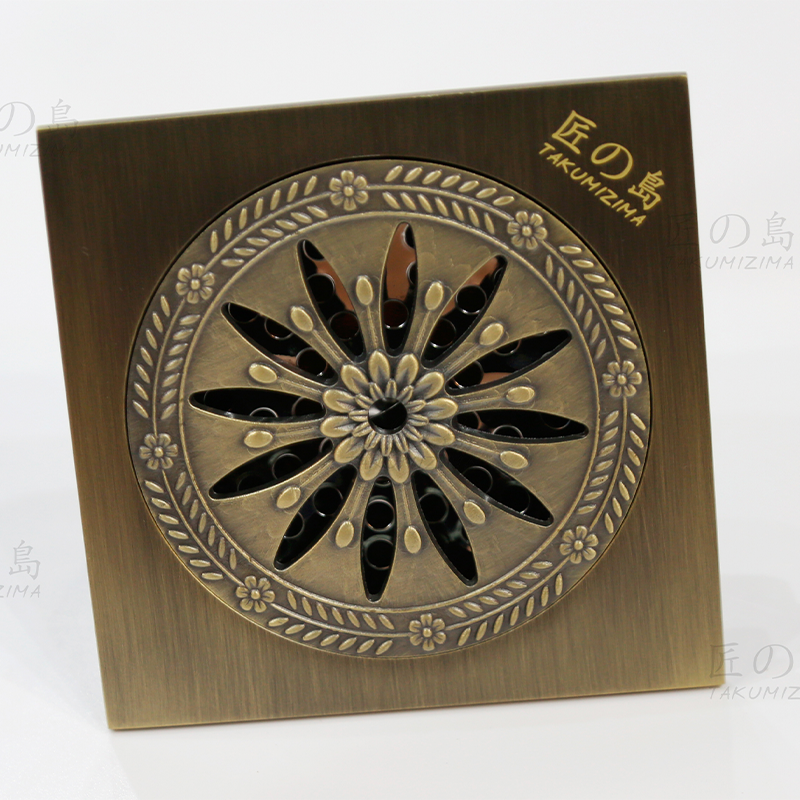

The TS-617 floor drain consists of four main parts: the drain cover, the drain base (attached to the floor), the debris screen, and the odor-blocking leg. The drain cover is designed with a finely crafted flower pattern, cut using CNC technology.

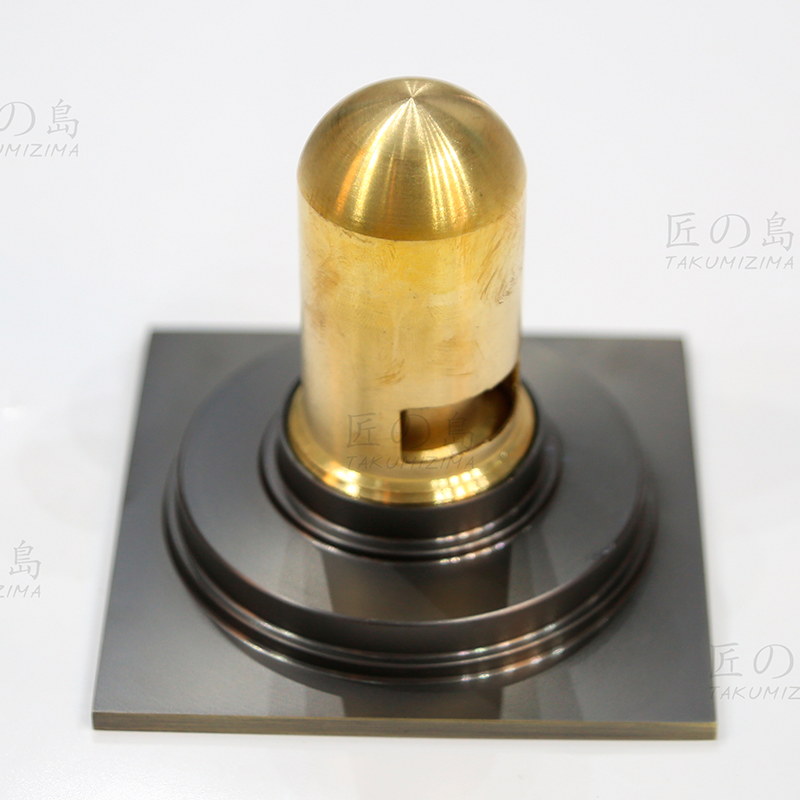

    The TS-617 floor drain can be flexibly used with different types of odor-blocking legs, either water trap or mechanical, suitable for each specific installation location.

    The TS-617 floor drain is a robust model with a vintage-style drain cover and color, making it suitable for projects with a classic or traditional design. It also features significant improvements in the water drainage and odor-blocking legs, helping water drain faster and effectively blocking odors.

The product is designed for easy installation and cleaning during use. We guarantee that all products are authentic, with a long-term warranty in accordance with Takumizima Japan's policy.
