Floor Drain Ts-703.10-6

Floor Drain TS-703.10-6
TECHNICAL SPECIFICATIONS
Product Code: TS-703.10-6
Product Name: Floor Drain
Color: Matte
Material: SUS 304 Stainless Steel

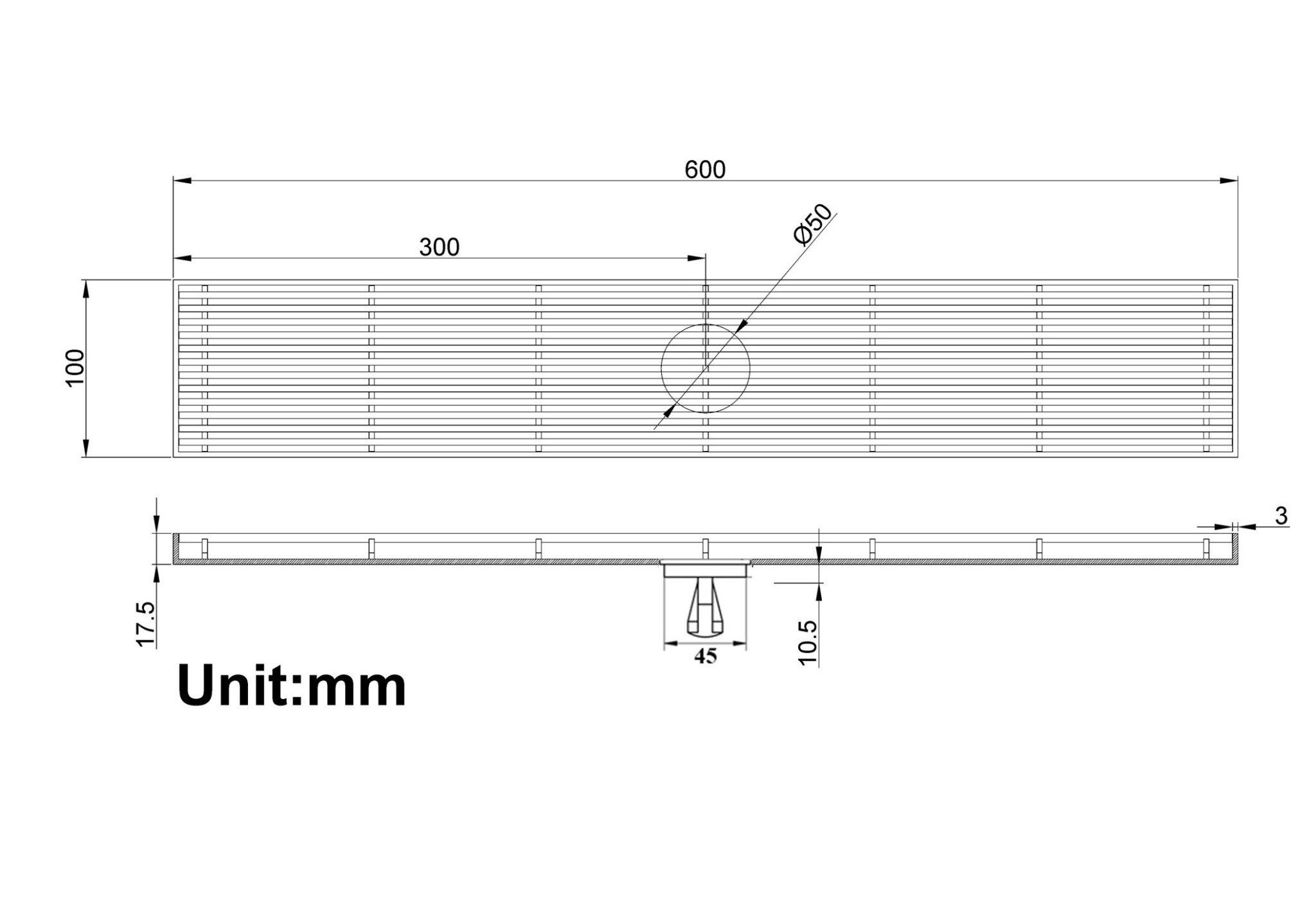

Dimensions: 600 * 100 mm
Drain Pipe Size: Ø60, 76, 90 mm
Odor Prevention Mechanism: Mechanical, Water Trap
Brand: Takumizima – Japan

PRODUCT DESCRIPTION
The TS-703.10-6 floor drain is made from SUS 304 stainless steel, precision CNC machined and cut. It features a matte finish, ensuring exceptional quality and excellent rust resistance with extremely high durability. With a square dimension of 600 * 100 mm and a drain hole of 40mm, this floor drain is compatible with drainage pipes of 60, 76, and 90 mm diameter.

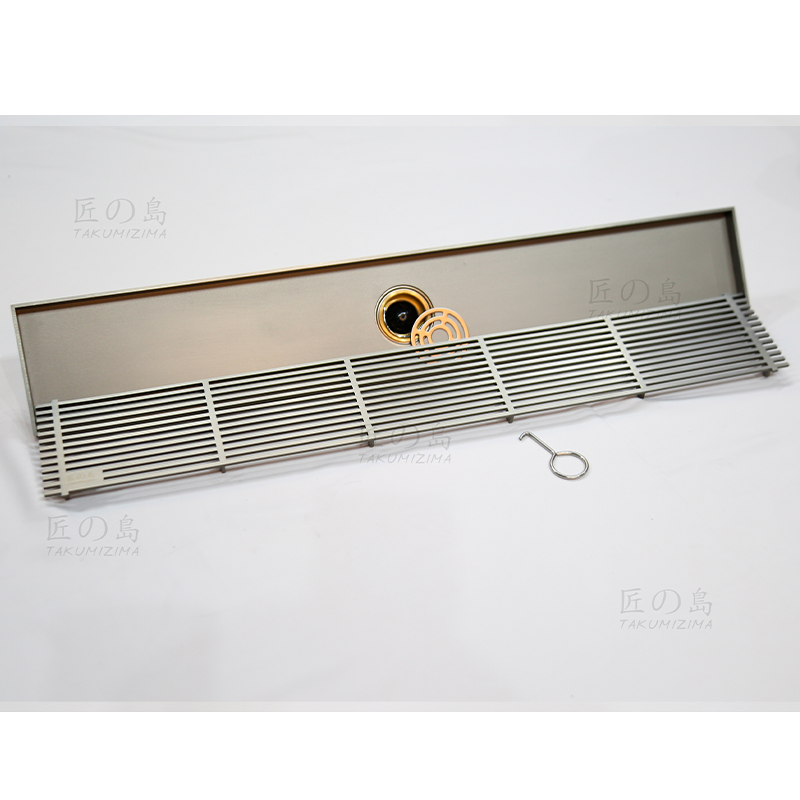

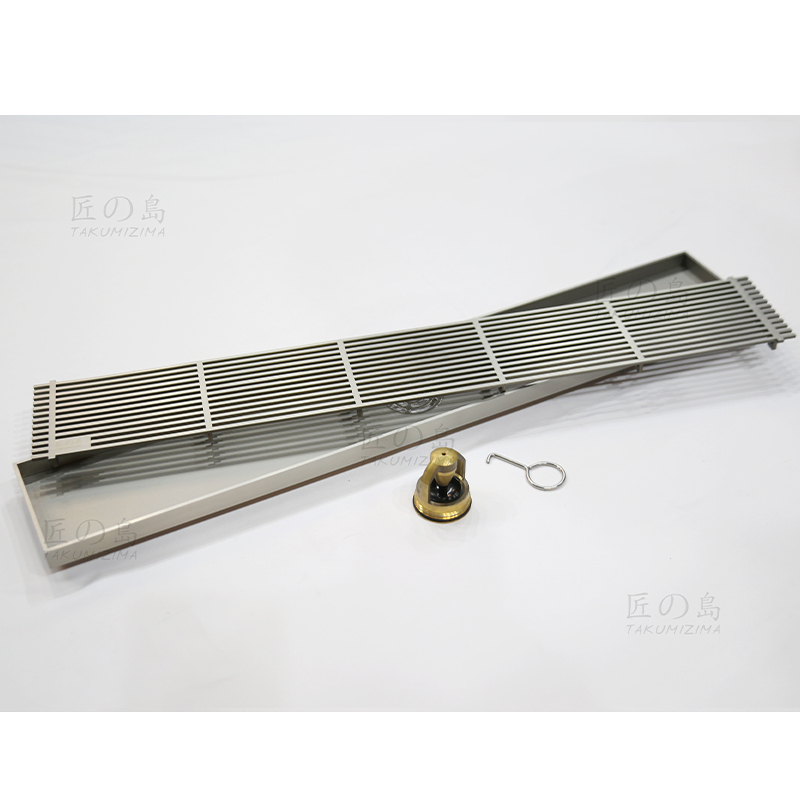

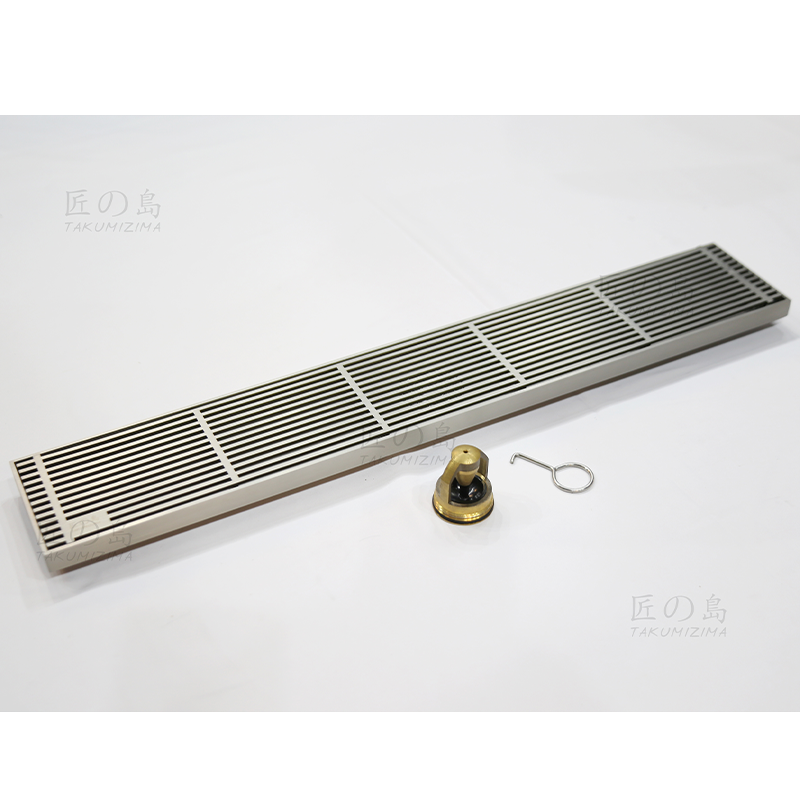

  The TS-703.10-6 floor drain consists of four main parts: the drain cover, the drain base (attached to the floor), the debris guard mesh, and the odor trap foot. The floor drain is designed with a CNC-cut slotted drain cover, with very precise and intricate details..

    The TS-703.10-6 floor drain can be flexibly used with various types of odor trap feet, including water traps or mechanical traps, suitable for each installation location.

     The TS-703.10-6 floor drain is a sturdy model with a modern slotted design on the drain cover. Its matte color is suitable for many types of floor tiles, and it features significant improvements in the water drainage foot and odor trap. This design helps water drain faster and prevents odors more effectively.

The product is designed for easy installation and maintenance during use. We guarantee that all products are genuine, with a long warranty according to the policy of Takumizima Japan.
