Floor Drain Ts-703.10-6l

Floor Drain TS-703.10-6L

TECHNICAL SPECIFICATIONS
Product Code: TS-703.10-6L
Product Name: Floor Strainer
Color: Frosted
Material: Stainless Steel SUS 304

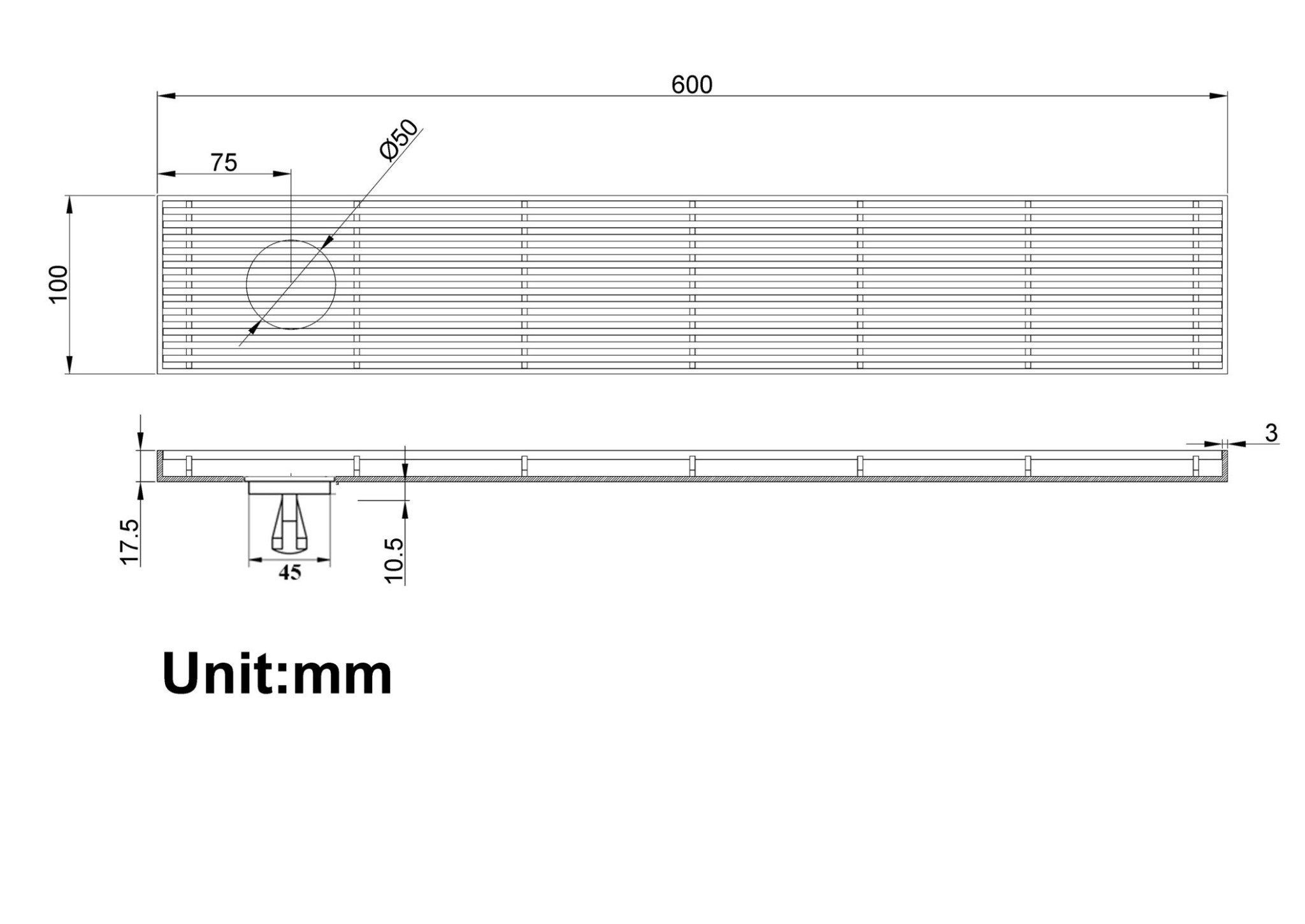

Dimensions: 600 * 100 mm, Offset Drain Hole
Drain Pipe Size: Ø60, 76, 90 mm
Odor Prevention Method: Mechanical
Brand: Takumizima – Japan

PRODUCT DESCRIPTION

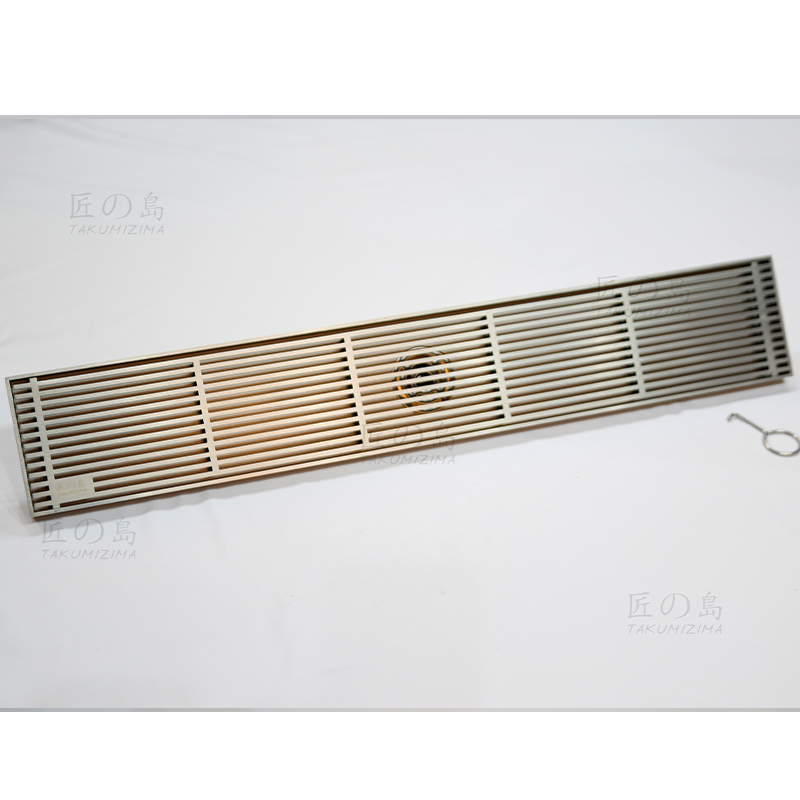

The TS-703.10-6L floor drain is made from SUS 304 stainless steel, with precision CNC cutting. The frosted color ensures superior quality, excellent rust resistance, and high durability. With square dimensions of 600*100mm and a 40mm offset drain hole, this model is compatible with drainage pipes of sizes 60, 76, and 90 mm.

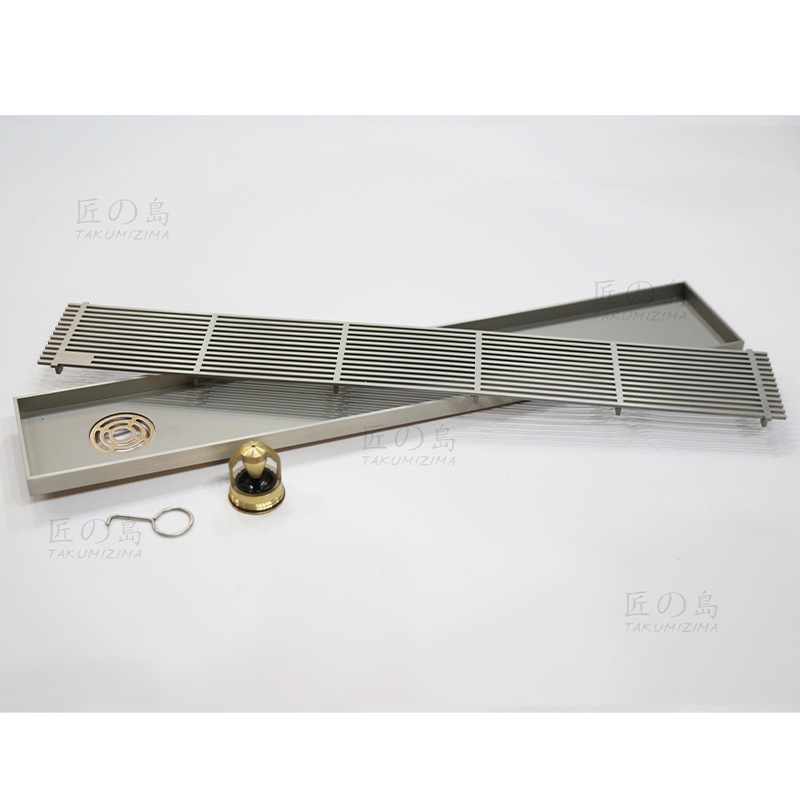

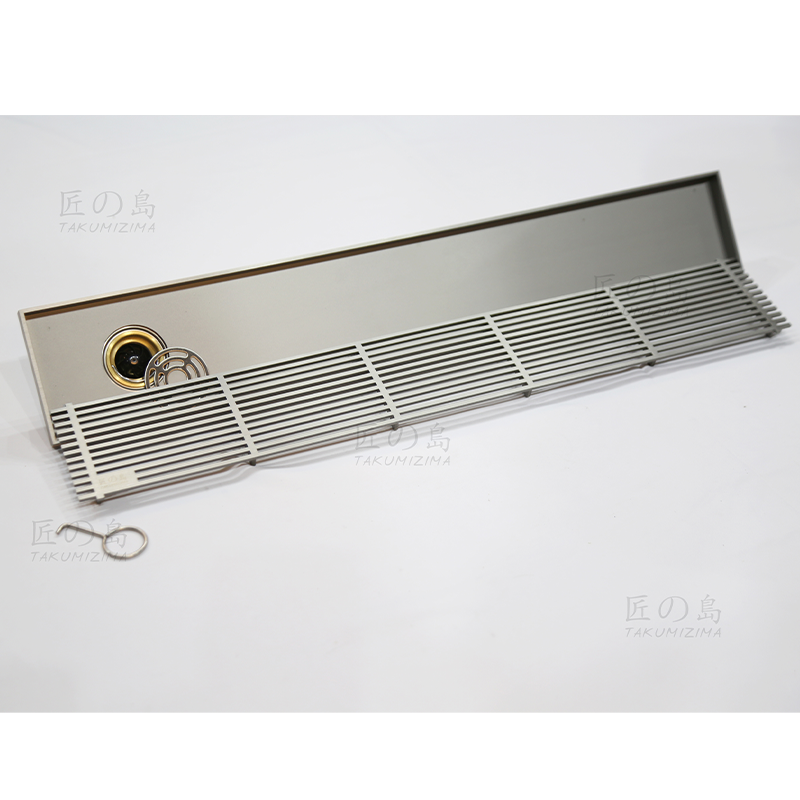

    The TS-703.10-6L floor drain consists of four main parts: the drain cover, the base (attached to the floor), the debris filter, and the odor trap. The floor drain is designed with a slatted drain cover, and the details are finely cut using CNC technology.

     The TS-703.10-6L floor drain can be used flexibly with various types of odor traps, such as water traps or mechanical traps, suitable for different installation locations.

The TS-703.10-6L floor drain is a robust model with a modern slotted design, featuring a frosted color that complements many types of floor tiles. It also includes significant improvements to the water drainage and odor prevention systems, ensuring faster water drainage and more effective odor control.

The TS-703.10-6L floor drain has an offset drainage hole (7.5 cm from the edge), addressing the issue of construction projects where the water pipe is positioned in the corner.

The product is designed for easy installation and cleaning during use. We guarantee that all products are genuine with a long-term warranty in accordance with the policies of Takumizima Japan.
