Floor Drain TS-806L
TECHNICAL SPECIFICATIONS
Product Code: TS-806L
Product Name: Floor Drain
Color: Matte White
Material: SUS 304 Stainless Steel
Dimensions: 600 * 80 mm
Drain Pipe Size: Ø60, 76 mm
Odor Prevention Mechanism: Mechanical, Water Trap
Brand: Takumizima – Japan

PRODUCT DESCRIPTION
The TS-806L floor drain is made from SUS 304 stainless steel, CNC-machined and PVD-coated. Its matte white color ensures outstanding quality and excellent rust resistance with extremely high durability. With rectangular dimensions of 600 * 80 mm and a drain hole size of 42mm, this floor drain is suitable for drainage pipes with diameters of 60 and 76 mm.

  The TS-806L floor drain consists of four main parts: the drain cover, the drain base (attached to the floor), the debris guard mesh, and the odor trap foot. The floor drain is designed with a solid square drain cover, CNC-cut with very precise details.

     The TS-806L floor drain can be flexibly used with various types of odor trap feet, including water traps or mechanical traps, suitable for each installation location.

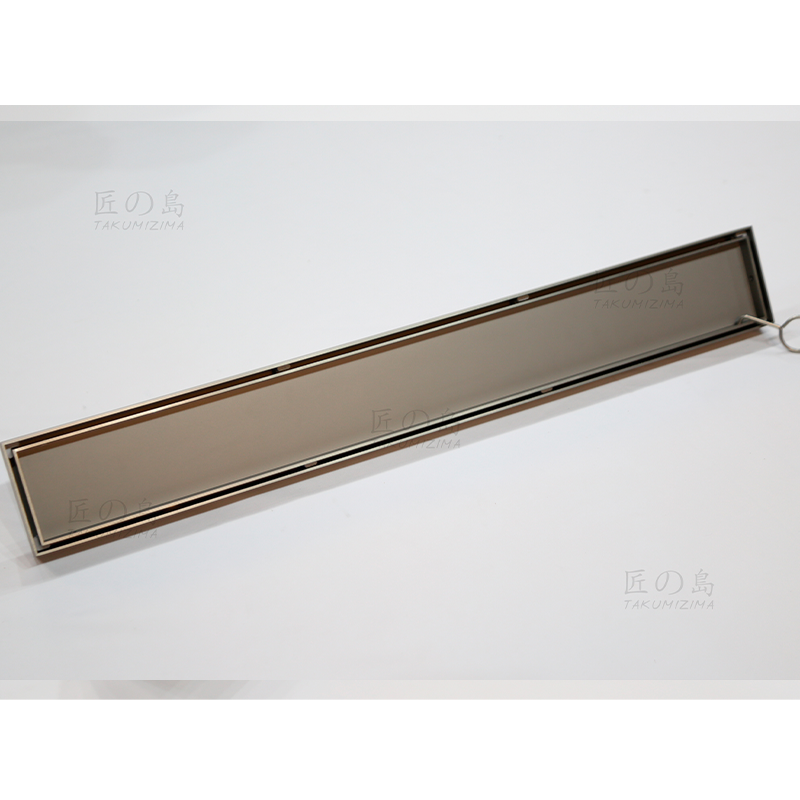

The TS-806L floor drain is a robust model with a seamless drain cover that can be fitted with tiles on the back, creating a smooth, continuous look for the bathroom floor (concealing the drain’s location). It also features significant improvements in the water drainage foot and odor trap, helping water drain faster and odors to be prevented more effectively.

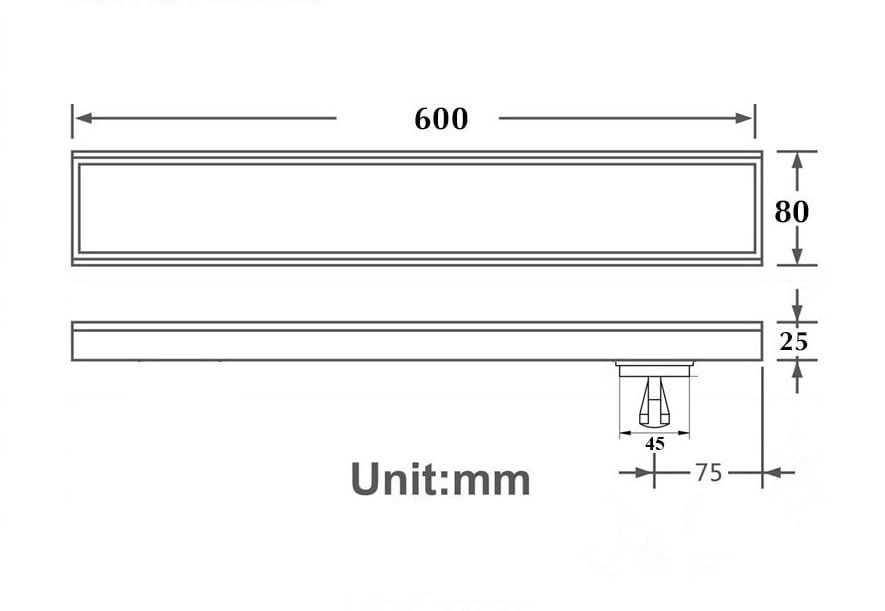

The TS-806L is a long floor drain with the drain hole offset to one side (7.5 cm from the edge). It can be installed in bathrooms where the drain hole is positioned in the corner.

The product is designed for easy installation and maintenance during use. We guarantee that all products are genuine, with a long warranty according to Takumizima Japan's policy.
