Floor Drain Ts-604d-12

Floor Drain TS-604D-12
TECHNICAL SPECIFICATIONS
Product Code: TS-604D-12
Product Name: Floor Drain Funnel
Color: Matte Black
Material: Chrome-plated Copper
Dimensions: 120 * 120mm
Drain Pipe Size: Ø76mm – Ø110mm
Odor Prevention Mechanism: Mechanical Valve
Brand: Takumizima – Japan

PRODUCT DESCRIPTION

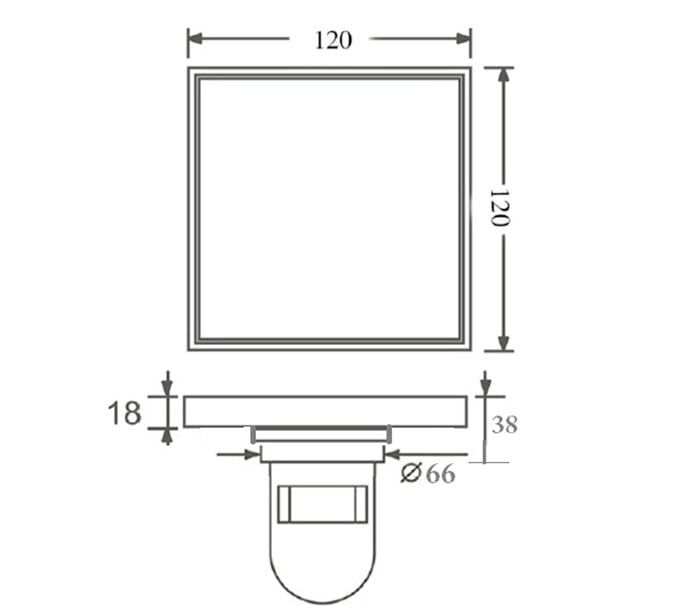

The TS-604D-12 floor drain is made from CNC-cut cast copper with a PVD coating. The matte black color ensures outstanding quality and excellent rust resistance with extremely high durability. With a square surface size of 120*120mm and a drain hole size of 66mm, this floor drain model is suitable for drainage pipes with sizes of Ø76, Ø90, and Ø110mm.

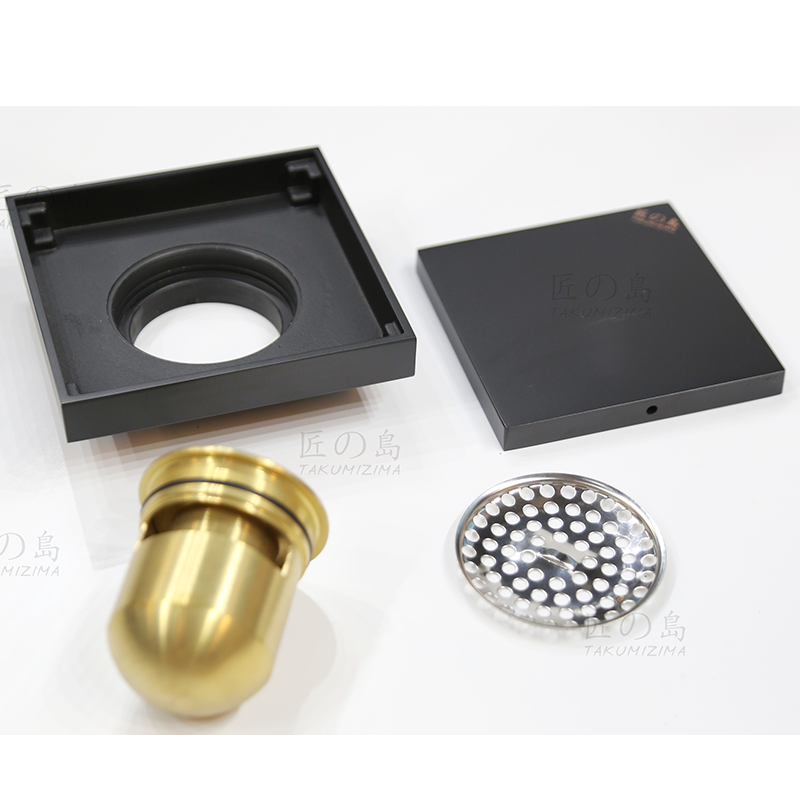

The TS-604D-12 floor drain consists of 4 main parts: the drain cover, the drain base (attached to the floor), the debris filter, and the odor prevention foot. The floor drain model is designed with a solid square drain cover, with CNC-cut details that are very intricate.

   The TS-604D-12 floor drain consists of 4 main parts: the drain cover, the drain base (attached to the floor), the debris filter, and the odor prevention foot. The floor drain model is designed with a solid square drain cover, with CNC-cut details that are very intricate.

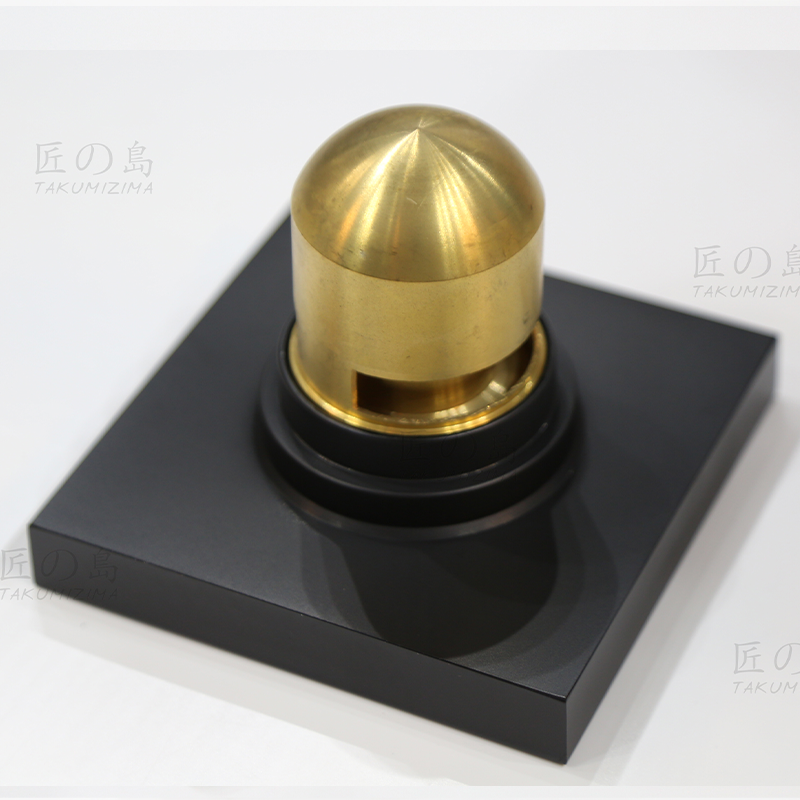

The TS-604D-12 floor drain uses a large diameter water trap foot, which helps the water drain quickly and ensures absolute odor prevention.

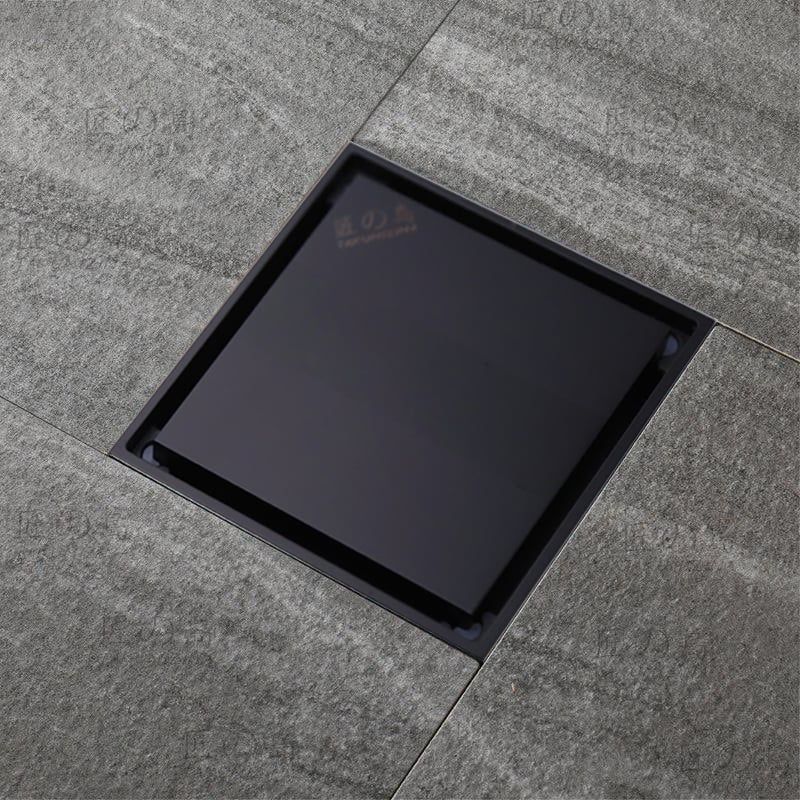

The TS-604D-12 floor drain is a thick, seamless model with a cover that can be tiled on the back to create a continuous look for the shower floor (concealing the drain placement). It also features significant improvements in the water drain and odor prevention foot, helping the water drain faster and providing better odor control.

The product is designed for easy installation and maintenance. We guarantee that all products are authentic, with long-term warranties according to the policies of Takumizima Japan.
